Power XL

Name: Power XL
Brand: PAW
SKU: power-xl

Power XL doors are specially designed to withstand challenging conditions such as mud, dirt, dust, moisture, abrasive materials, high wind loads and extreme temperatures. With high-performance adaptability to any industrial environment, they are used in manufacturing facilities, aircraft hangars, shipyards and recycling plants.

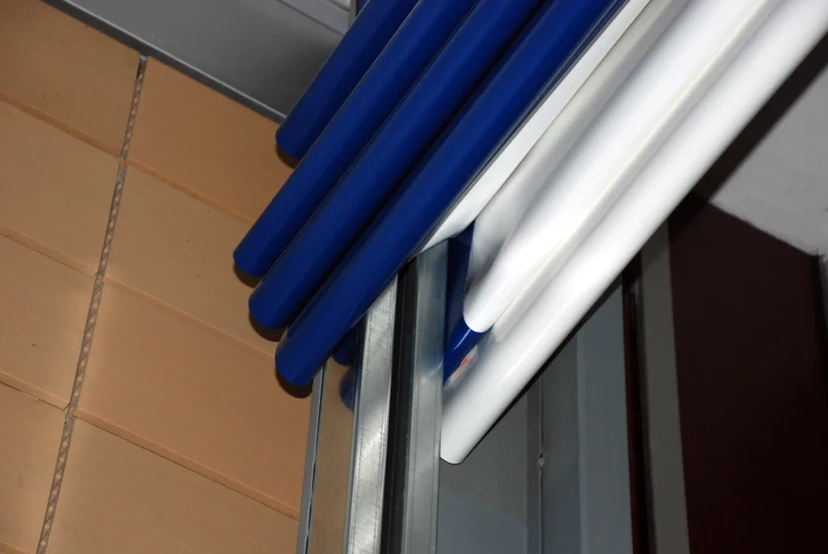

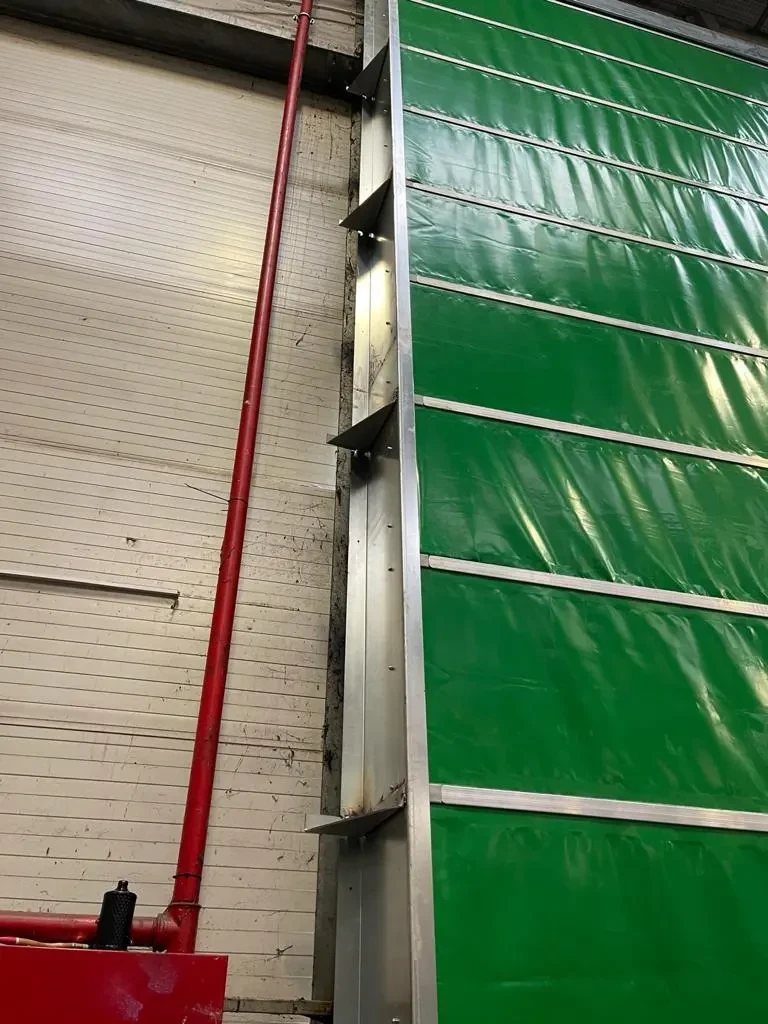

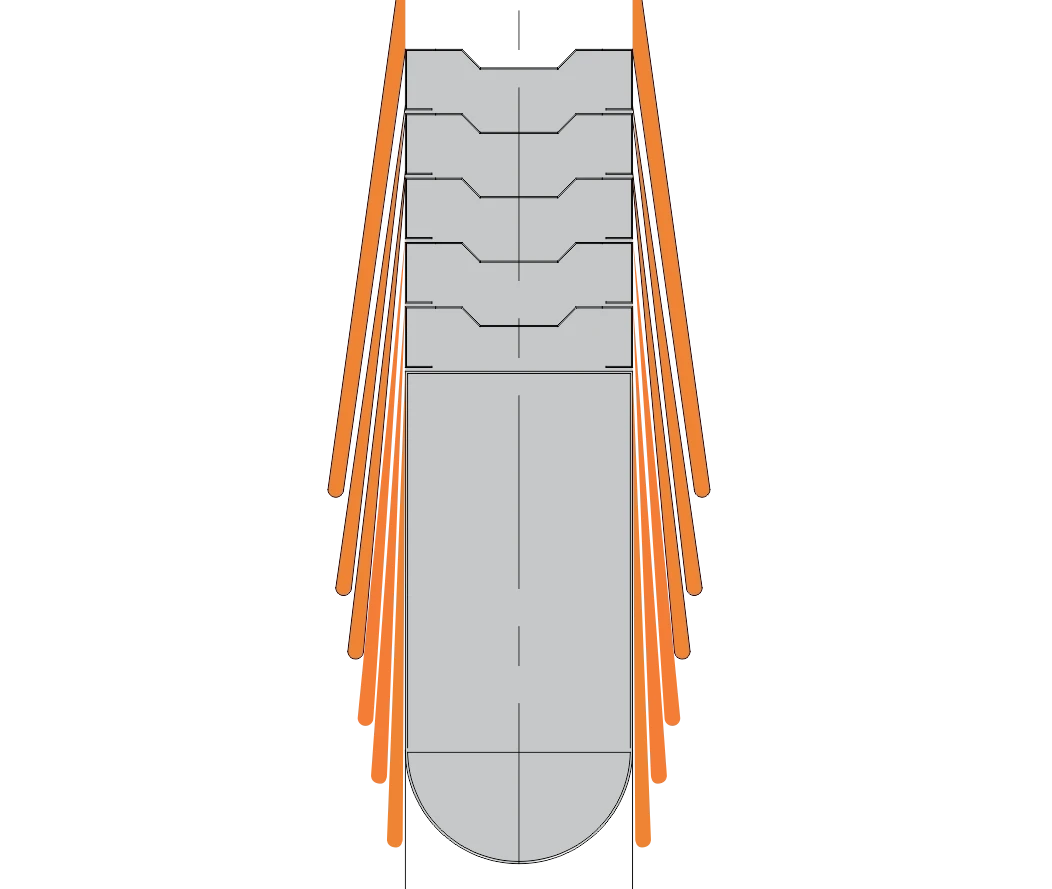

Constructed with special extruded aluminum wind bars and double-layered fabric, Power XL doors offer enhanced resistance to wind through a reinforced body structure. Challenging the power of the wind, they bring together high insulation and comfort.

0.15 - 0.35 m/s

Opening Speed

Up to 15,000 mm

Max Width

Up to 20,000 mm

Max Height

Class 1 / 3

Wind Resistance

IP 55 / 65

Control Panel

-30 °C to +70 °C

Temperature Range

Media Gallery

Photos & Videos

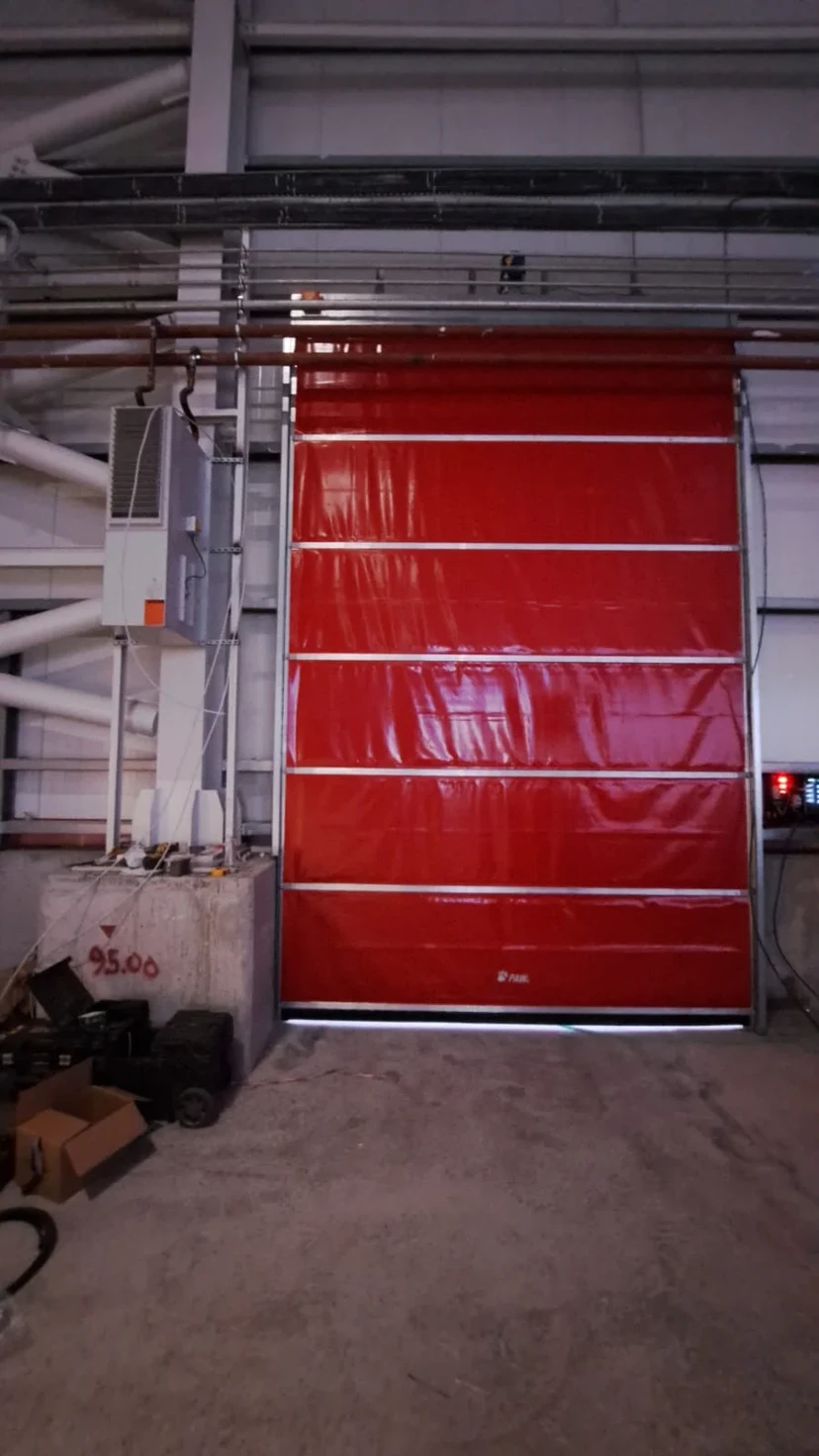

Power XL factory industrial hangar pvc door

Power XL industrial production area hangar pvc door

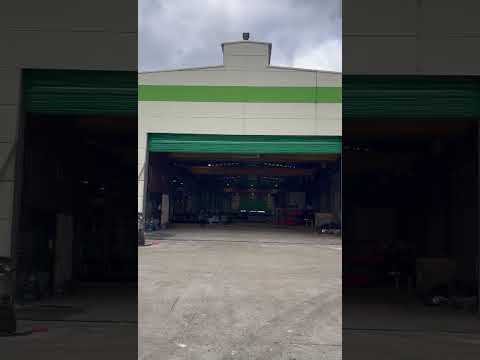

Video 1

Video 2

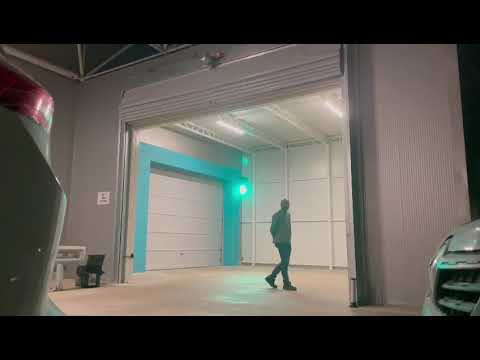

Video 3

Video 4

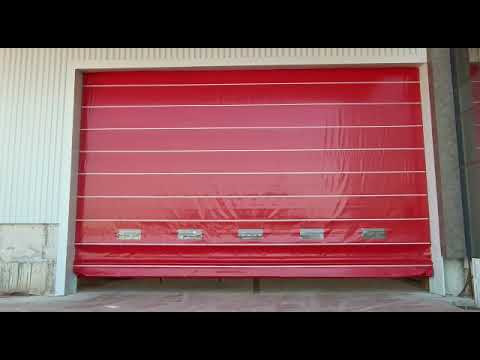

Video 5

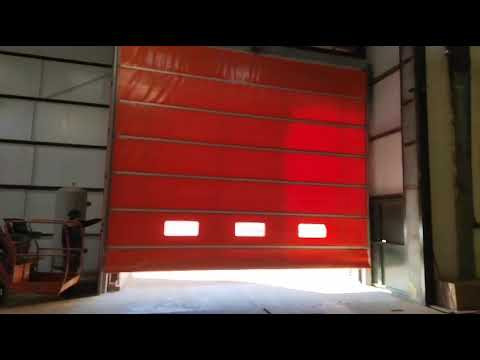

Video 6

Product Overview

Challenging the power of the wind.

Power XL doors are designed for large and medium-sized openings and intensive use, and are virtually limitless in configuration possibilities. Their robust and reliable structure provides long-term durability for maximum security and efficient access to your facilities.

Power Doors are developed with a focus on tight sealing, ensuring a secure seal even in the most demanding environments. The combination of few moving parts and corrosion-resistant fabric makes this product an ideal solution, particularly for challenging mining applications. The door requires minimal space at the installation location and lets you maximize your door passage area.

✓Special extruded aluminum wind bars and double-layered fabric for enhanced wind resistance
✓Reinforced body structure with few moving parts for long-term durability
✓Corrosion-resistant fabric and tight sealing for mud, dust, moisture and abrasive materials

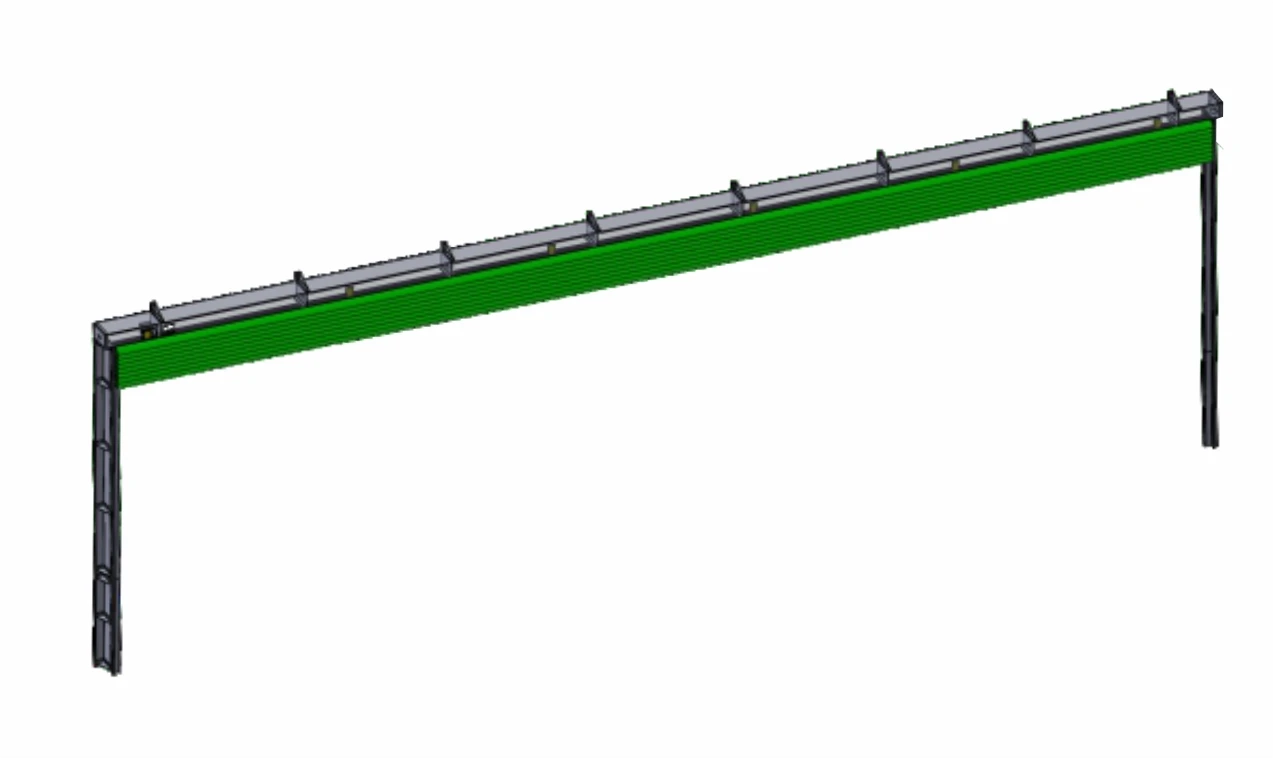

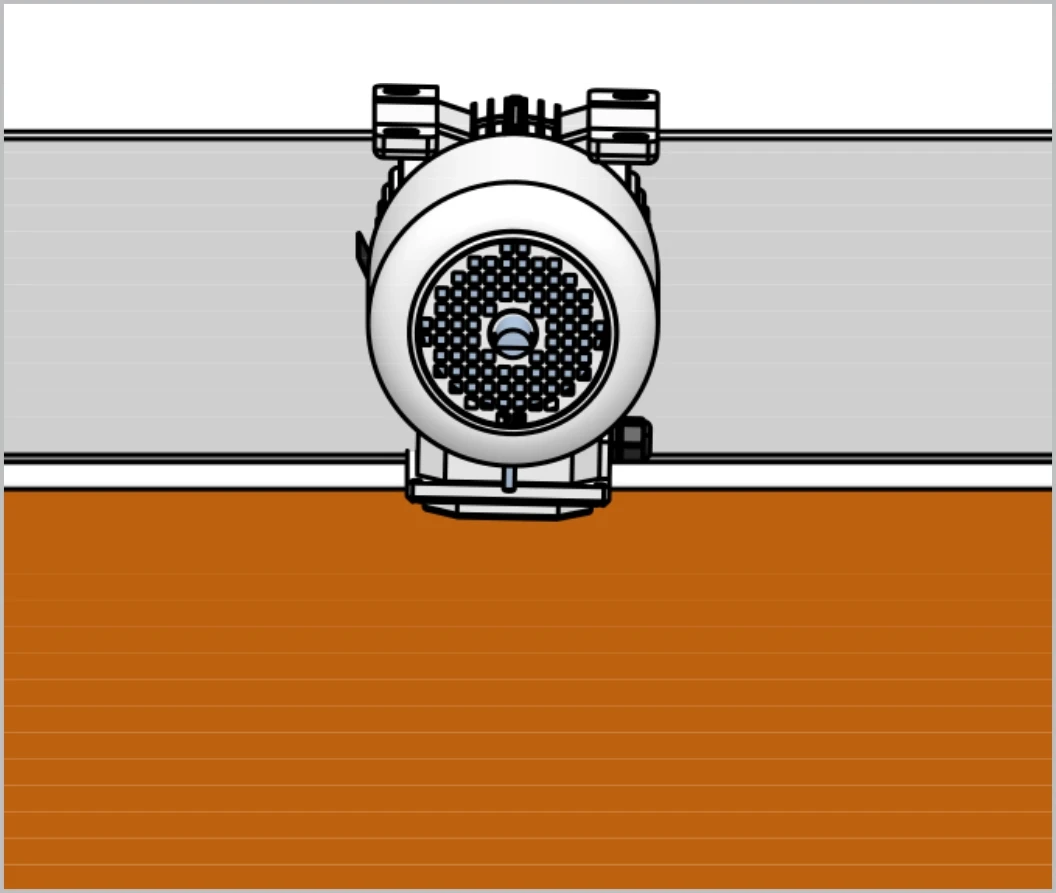

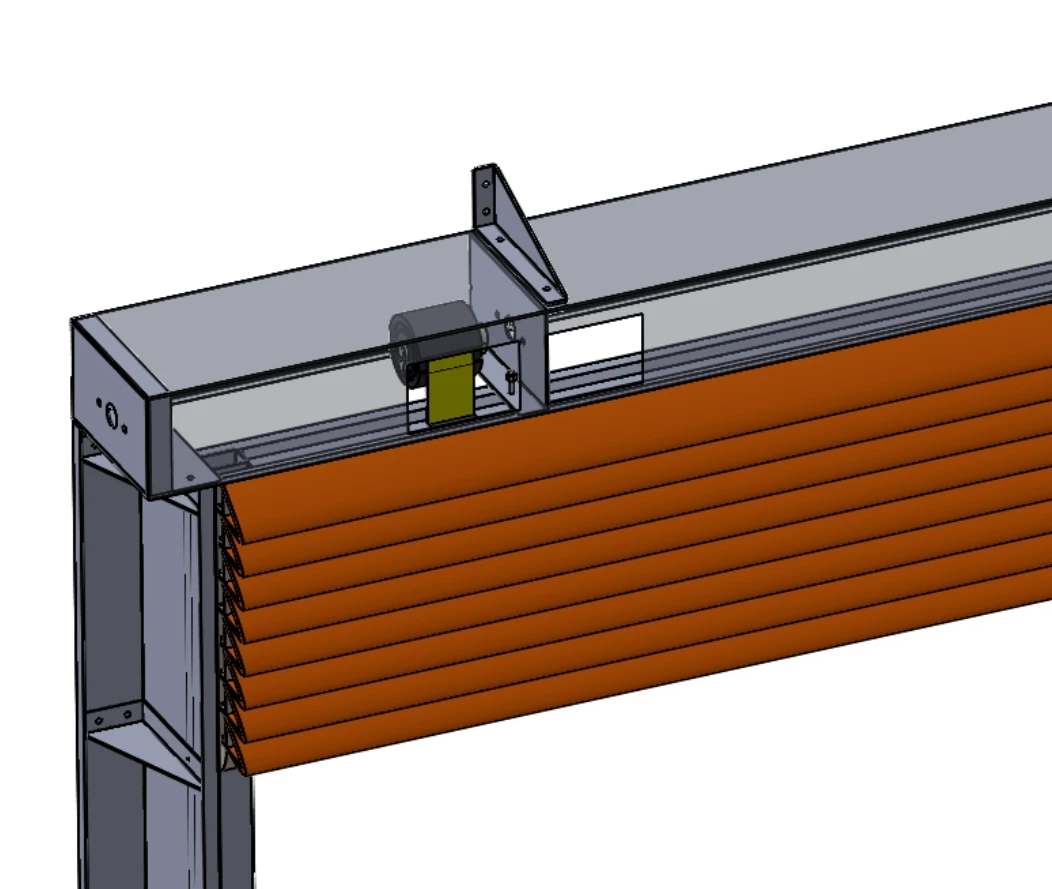

✓Galvanized carrier rail system with rope system and PAW motor system
✓Control panel compliant with IP 65 standards
✓Minimal installation space requirement to maximize the door passage area

Get a Custom Quote

Quick Specifications

Motor1.5 / 5.5 kW · 400 V AC · 50 / 60 Hz

Max Size (W x H)15,000 x 20,000 mm

Opening / Closing Speed0.15 - 0.35 m/s

PVC Curtain0.9 mm (1.7 mm optional) · 900 g/m² · -30 / +70 °C

Wind ResistanceClass 1 / 3

Get a Custom Quote

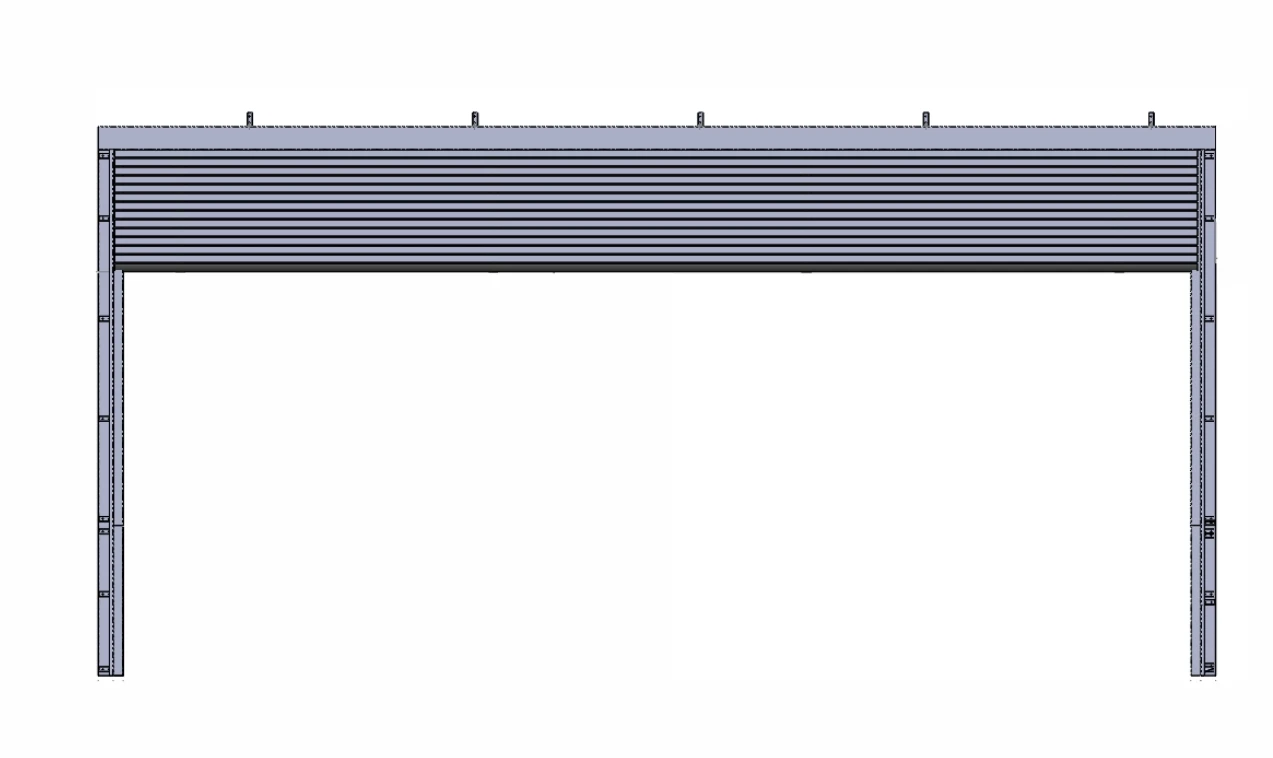

Fuse protection 32 A · Control panel IP 55 / 65 · Required folding space depends on clear height

Colour Range

Pure White(MH 907)

Zinc Yellow(MH 168)

Carmine Red(MH 370)

Bright Red Orange(MH 221)

Ultramarine Blue(MH 544)

Moss Green(MH 679)

Light Grey(MH 717)

Anthracite Grey(MH 782)

Ideal Applications

Where Power XL Doors excel

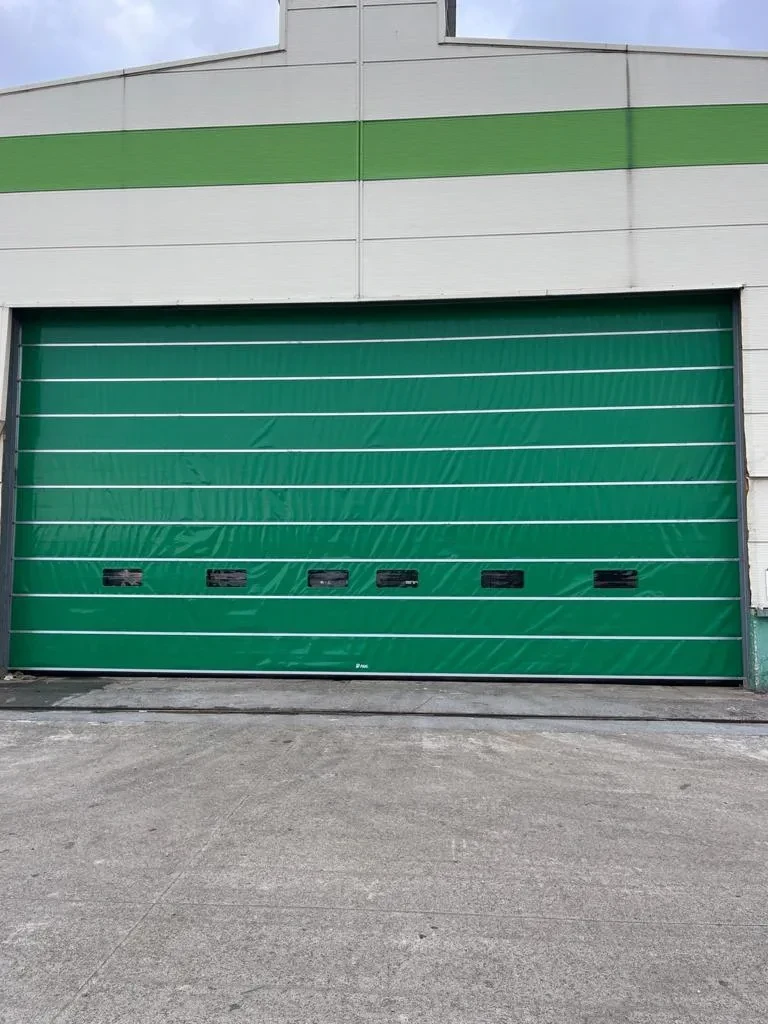

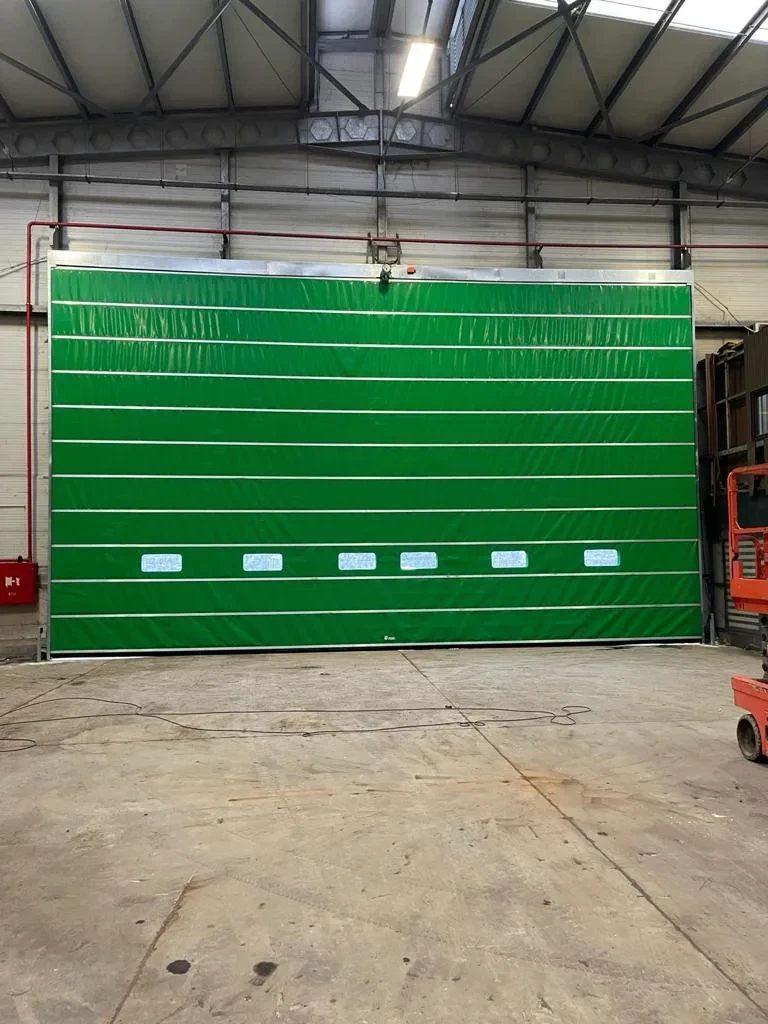

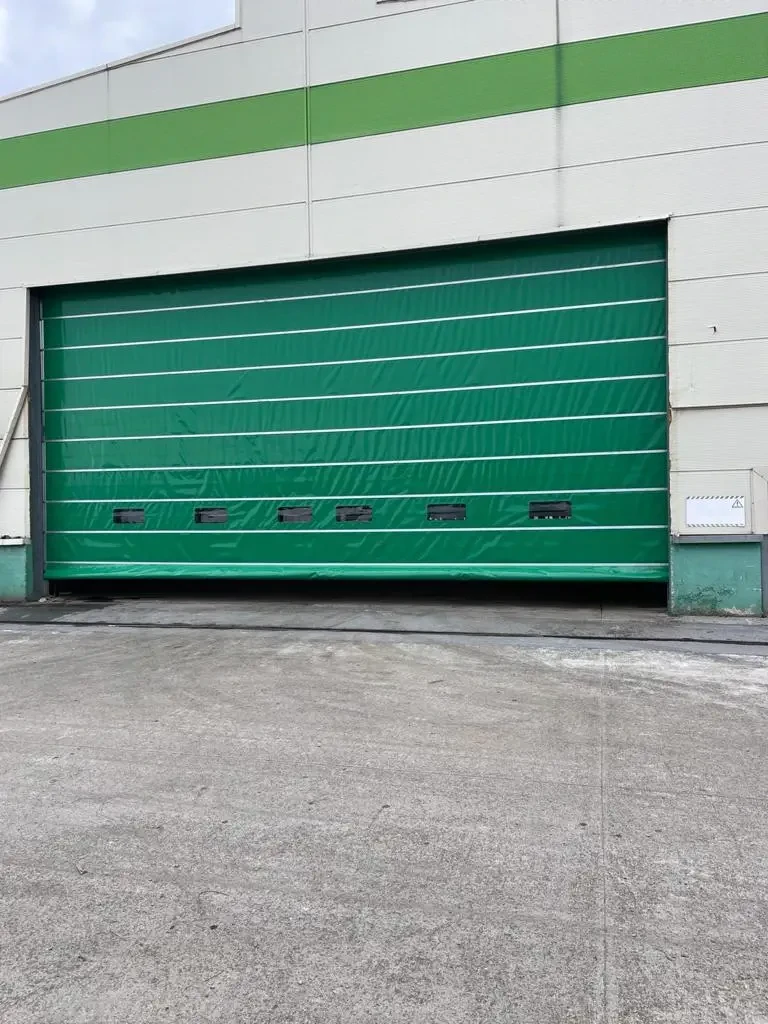

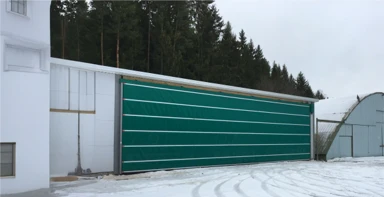

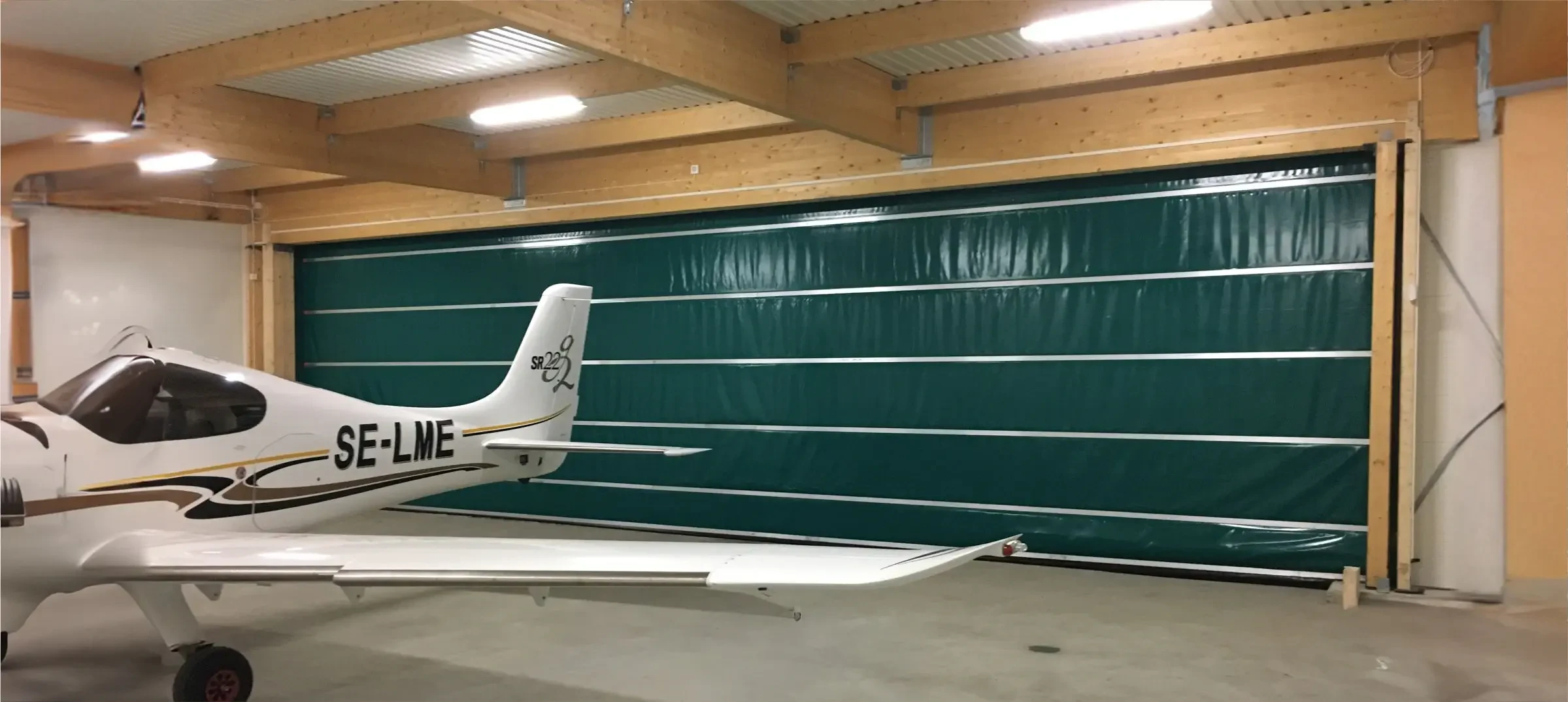

Aircraft Hangars

Large openings with tight sealing and strong wind resistance for aircraft storage and maintenance.

Shipyards

Reinforced body and aluminum wind bars for exposed, high-wind locations.

Manufacturing Facilities

Durable, intensive-use doors for large and medium-sized openings in industrial environments.

Recycling Plants & Mining

Corrosion-resistant fabric and secure sealing against mud, dirt, dust and abrasive materials.

FAQ

Frequently asked questions

Everything you need to know about our products and services. Can't find the answer? Our technical team is happy to help.

Have a project-specific question?

Contact our technical support team and get an answer tailored to your facility and requirements.

Contact Technical Support

What conditions are Power XL doors designed for?

Power XL doors are built to withstand mud, dirt, dust, moisture, abrasive materials, high wind loads and extreme temperatures. They are used in manufacturing facilities, aircraft hangars, shipyards and recycling plants, and the corrosion-resistant fabric also suits mining applications.

How does the Power XL resist wind?

The door combines special extruded aluminum wind bars, double-layered fabric and a reinforced body structure. Wind resistance is Class 1 / 3.

What is the maximum size of a Power XL door?

The maximum size is 15,000 x 20,000 mm. Motor power is 1.5 / 5.5 kW at 400 V AC, 50 / 60 Hz, with 32 A fuse protection. Opening and closing speeds range from 0.15 to 0.35 m/s.

What temperature range and curtain material does it use?

The PVC curtain is rated for -30 °C to +70 °C. Standard thickness is 0.9 mm, with 1.7 mm available as an option, and the fabric weight is 900 g/m².

Which safety and control options are available?

Optional equipment includes safety photocell, additional photocell, light barrier, loop detector, hand sensor, remote control system, additional button, warning flasher, traffic light, motor cover, manual handle and a speed driver. Safety edge, anti-crash system, rope switch, interlock system, radar, front cover and spring-loaded emergency exit are not available for this model.

What colors are available?

The PAW PVC curtain range includes MH 907 (RAL 9010), MH 168 (RAL 1018), MH 370 (RAL 3002), MH 221 (RAL 2008), MH 544 (RAL 5002), MH 679 (RAL 6005), MH 717 (RAL 7035) and MH 782 (RAL 7016). Codes are similar to RAL and slight tonal differences may occur. Custom colors are available on request.
