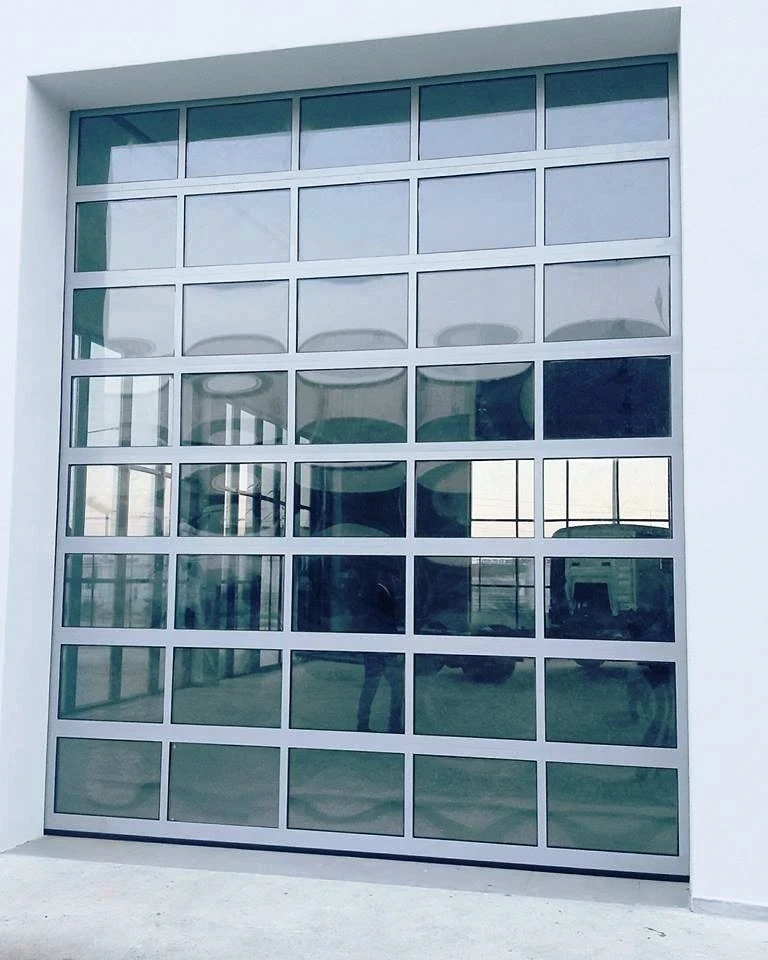

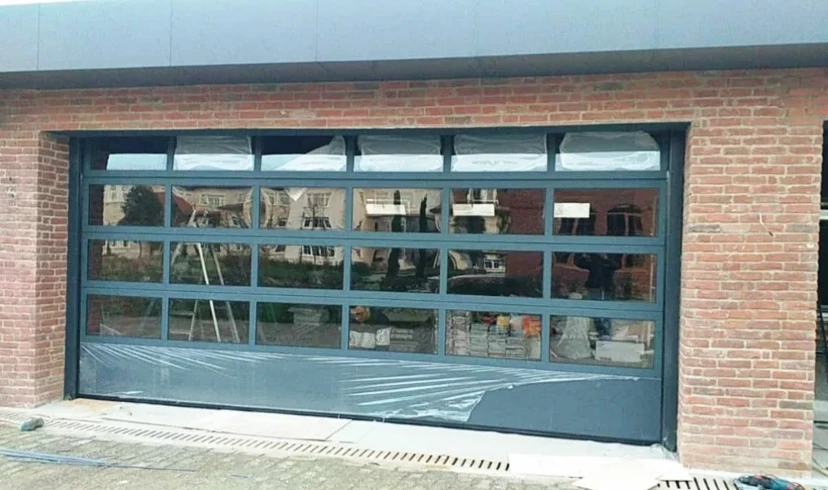

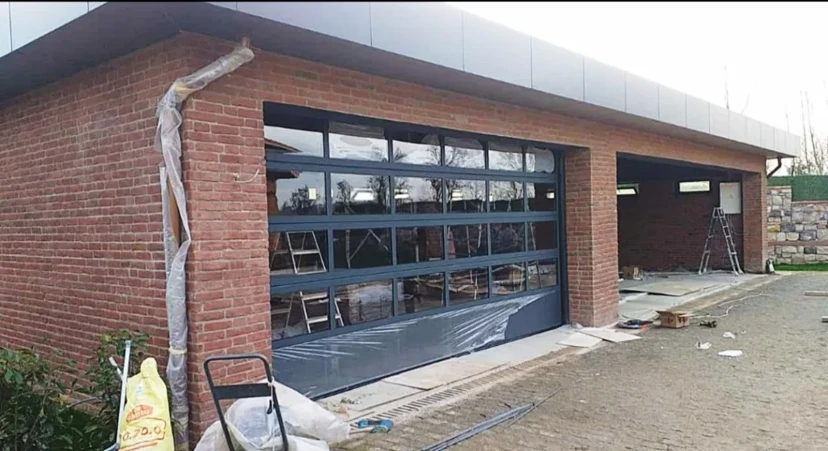

Full View Sectional Doors
Full View doors are among the most preferred sectional door models, emphasizing the aesthetics of your structures. Panels are made of 500 mm - 610 mm finger-protected aluminum profiles, typically glazed with 3 mm Plexiglas, with an optional double-glass model using insulated glass.
Durable and long-lasting, PAW-Full Vision doors are designed to provide fast and safe passage, especially in modern businesses where aesthetics are important, such as automotive sales offices and factory entrances and exits.
Media Gallery
Photos & Videos
Product Overview
Aesthetics without compromising safe passage.

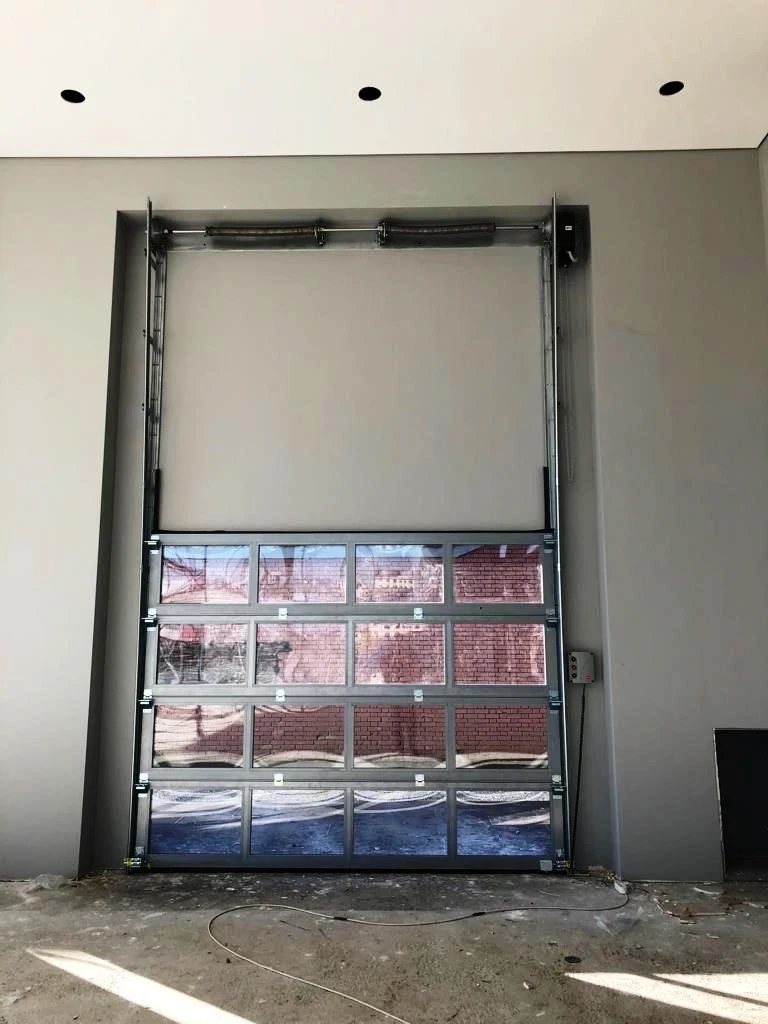

Full View doors can be used as normal, high or vertical bedding depending on the area to be applied. Profile thicknesses vary according to the sections used and are specially designed to be compatible with each other. Tempered or laminated glass options are available for maximum compatibility with different structures.
Panels are connected with galvanized steel hinges, and the wheel sets that guide the door on the rails are made of noise-reducing polyamide for quiet operation. Door panels are pulled by winding steel cables on drums, and cable breakage and spring breakage safeties prevent the door from falling. Thanks to the torsion spring system, the door can be lifted manually regardless of its weight, and can be operated manually or with a chain during a power outage or motor failure.
- ✓500 mm - 610 mm finger-protected aluminum profile panels
- ✓3 mm Plexiglas as standard, with tempered, laminated or insulated double-glass options
- ✓Natural anodized finish as standard, other RAL colors to match the facade
- ✓Opto laser and wireless pneumatic bottom safety system: the door opens automatically on contact with an object
- ✓Cable breakage and spring breakage safety systems
- ✓Standard control unit and remote control
Quick Specifications
Control panel IP 55 · Manual operation via torsion spring system or chain during power failure
Ideal Applications
Where Full View Doors excel

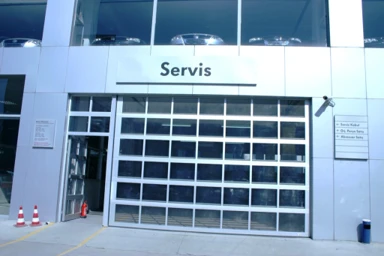

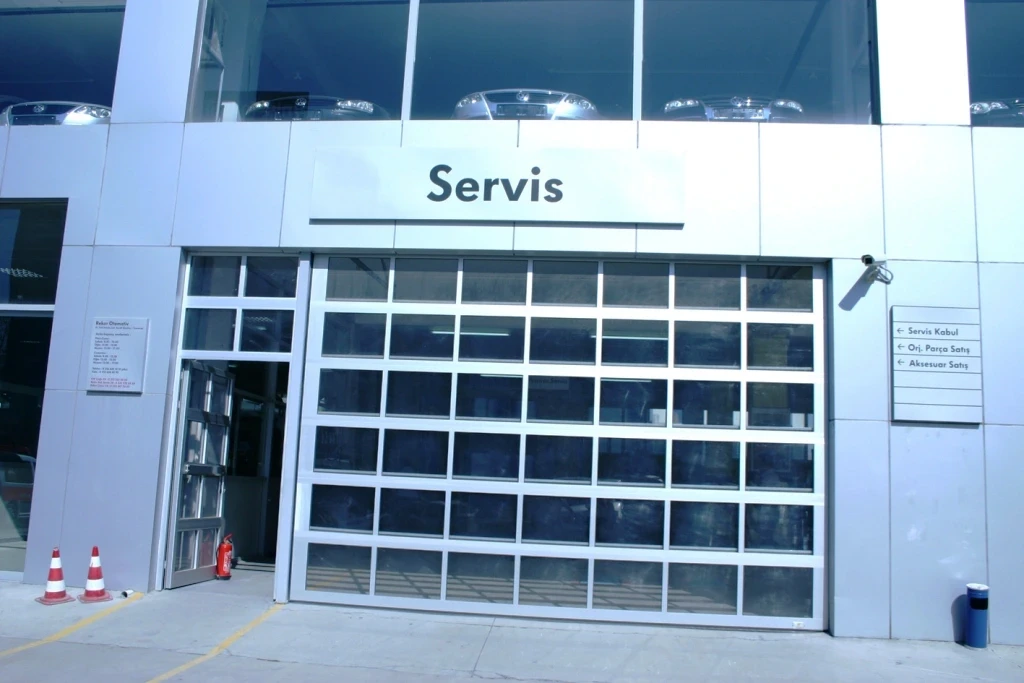

Automotive Sales Offices
Emphasizes the aesthetics of the structure with a fully glazed facade.

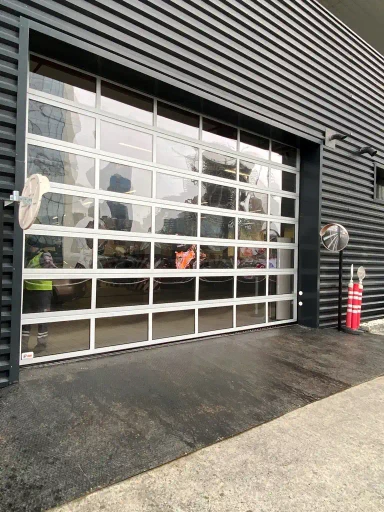

Factory Entrances & Exits
Fast and safe passage in durable, long-lasting doors.
Modern Business Facades
Anodized or RAL-colored frames match the external facade color as desired.
Areas Requiring Safe Passage
Opto laser and pneumatic bottom safety system opens the door automatically when it touches an object.
